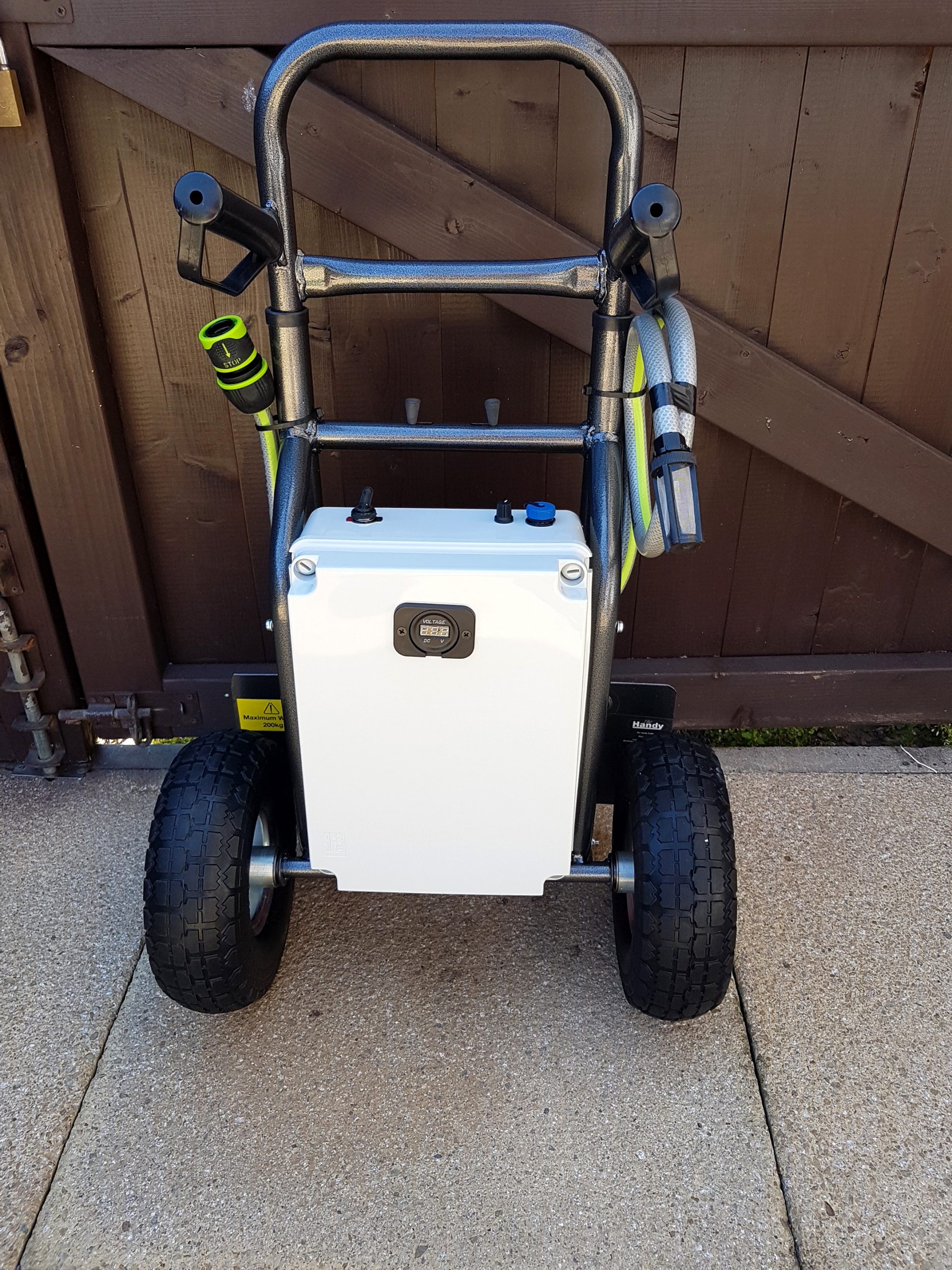

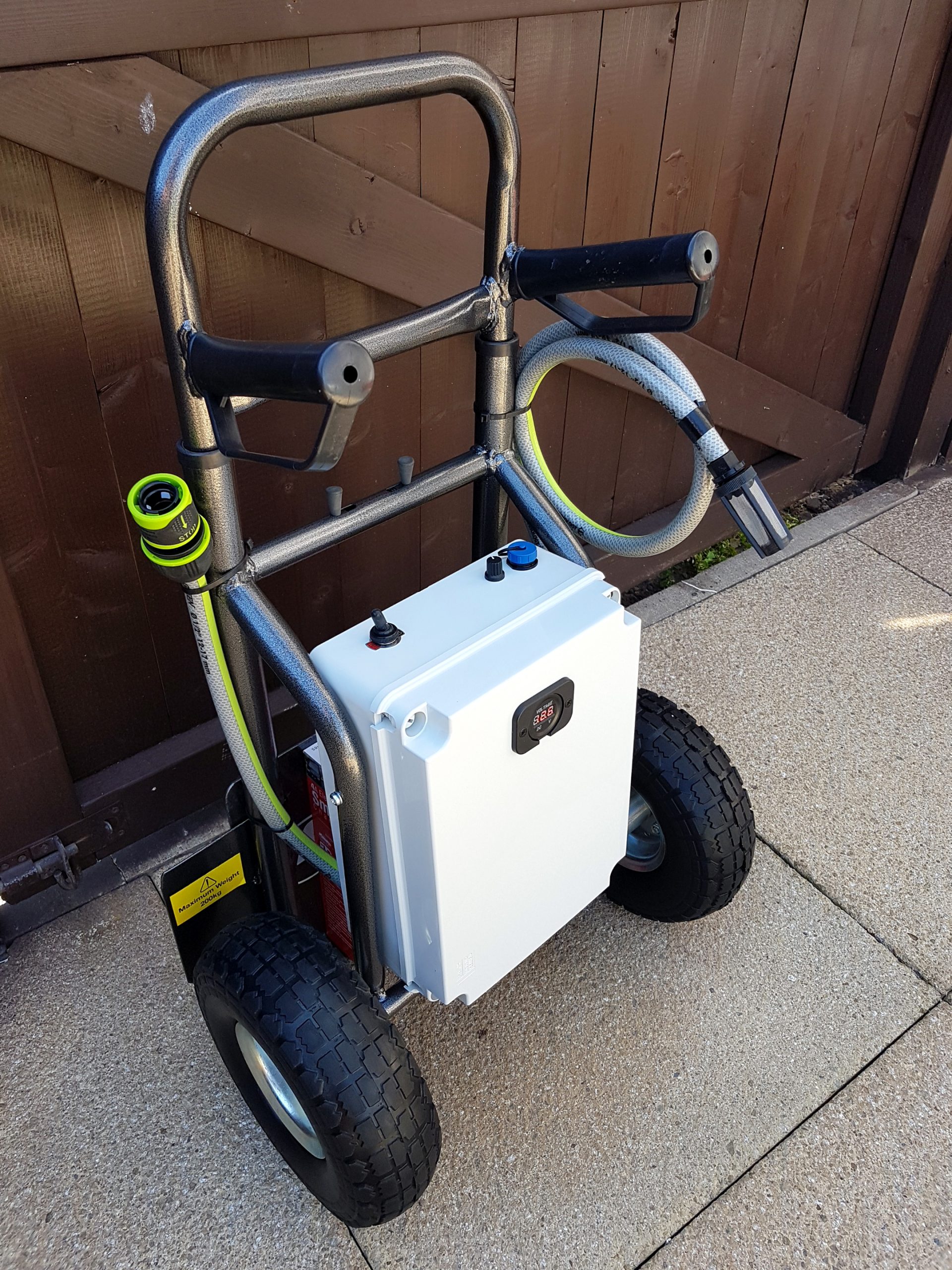

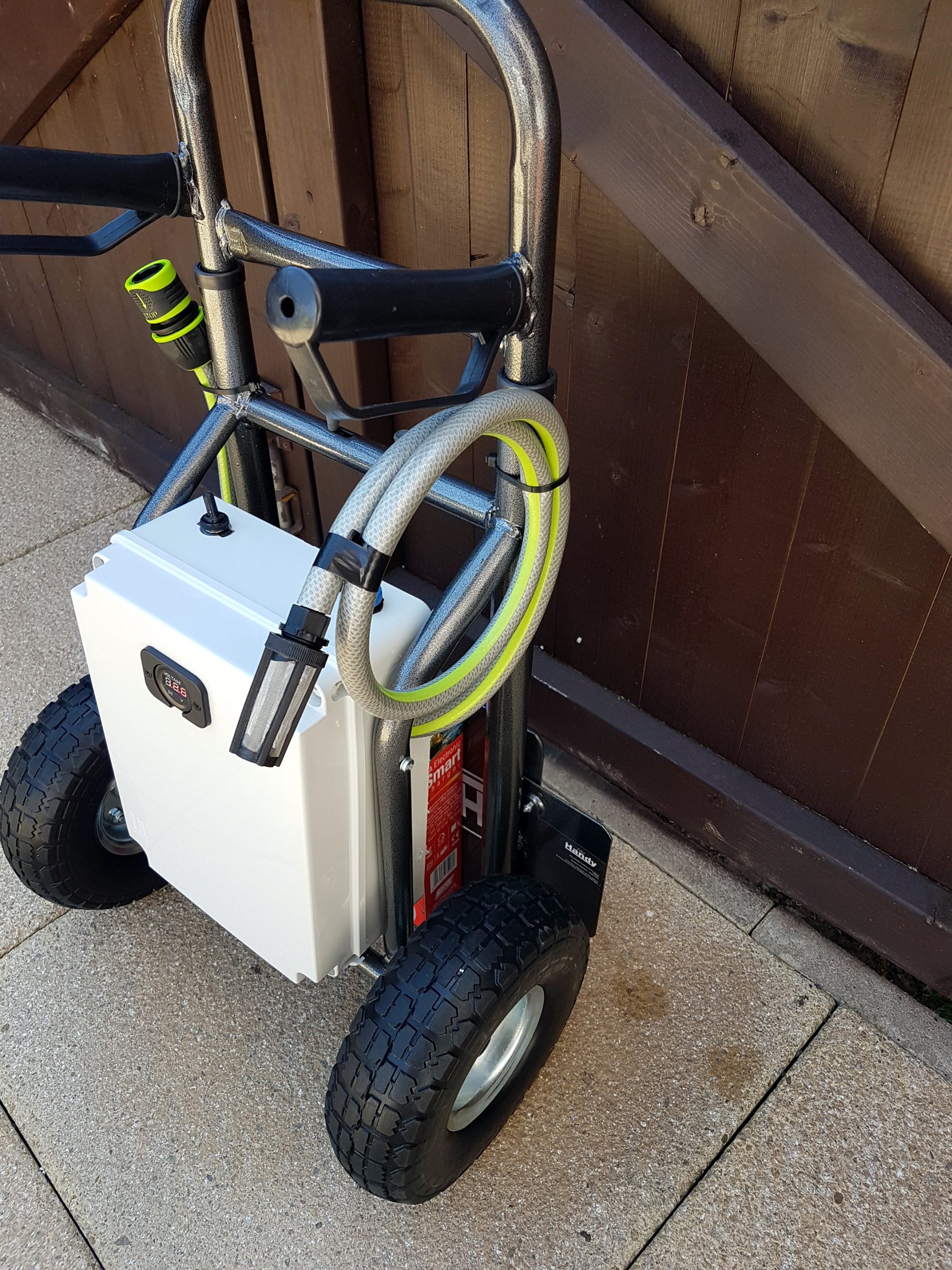

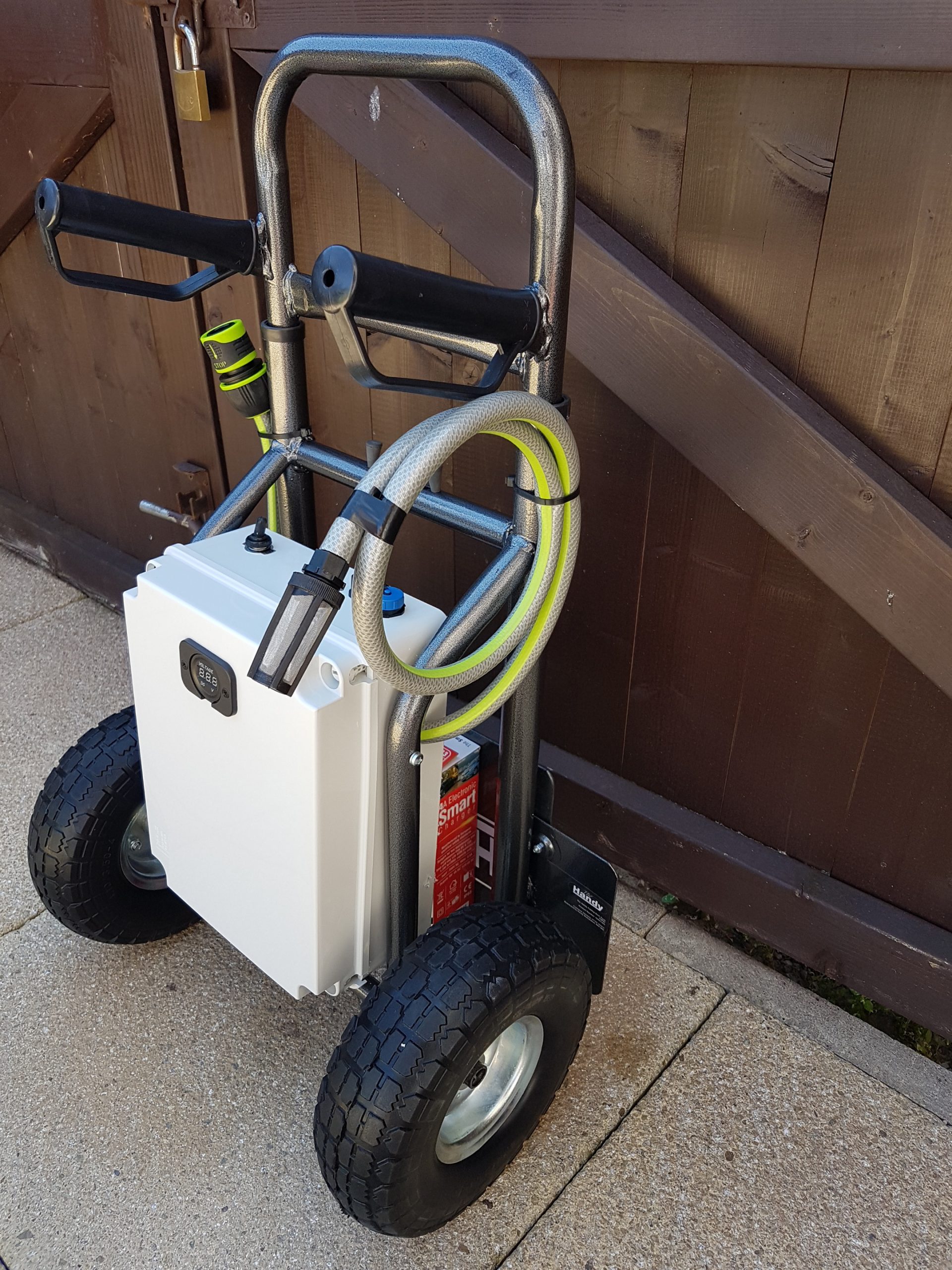

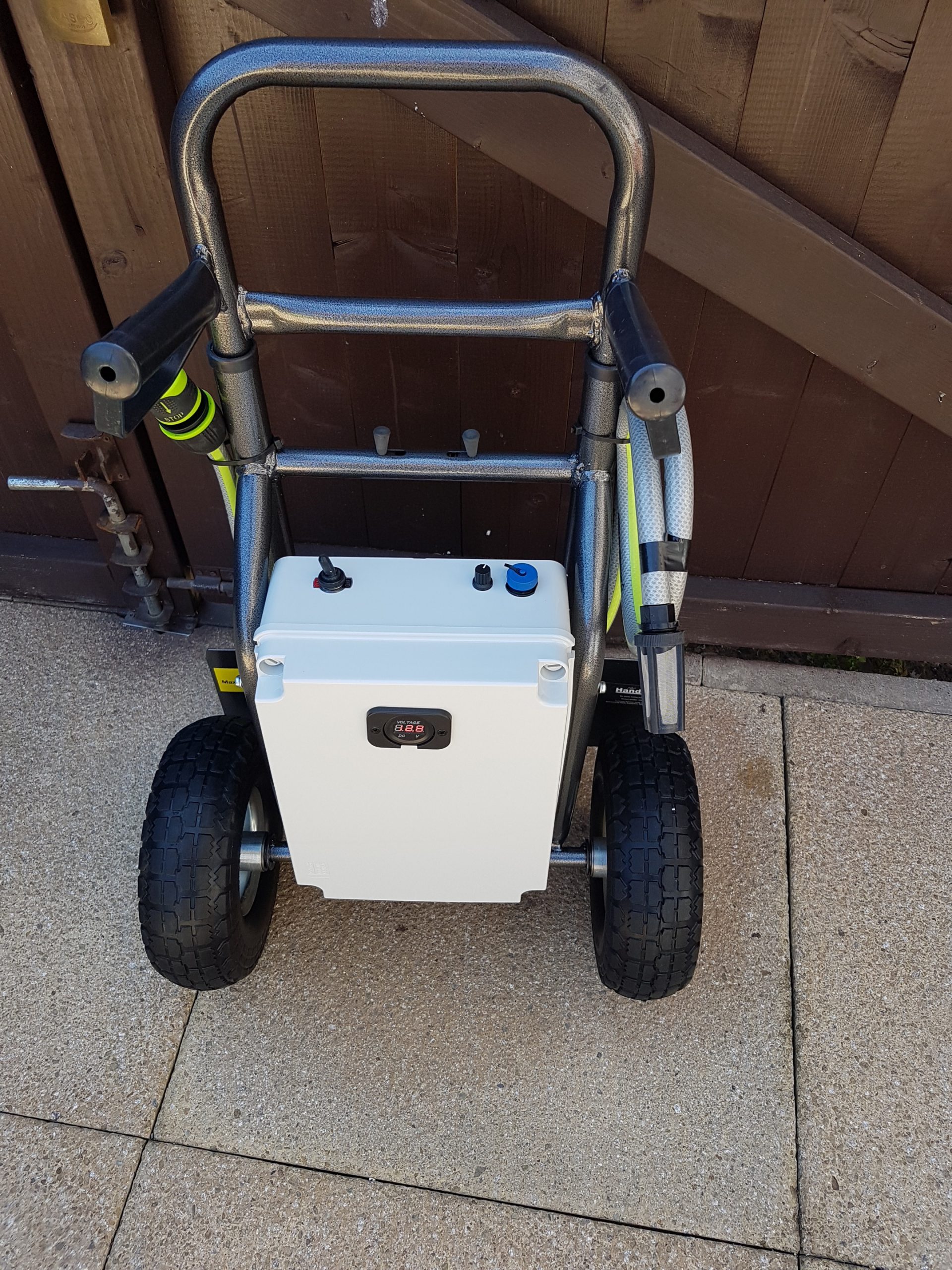

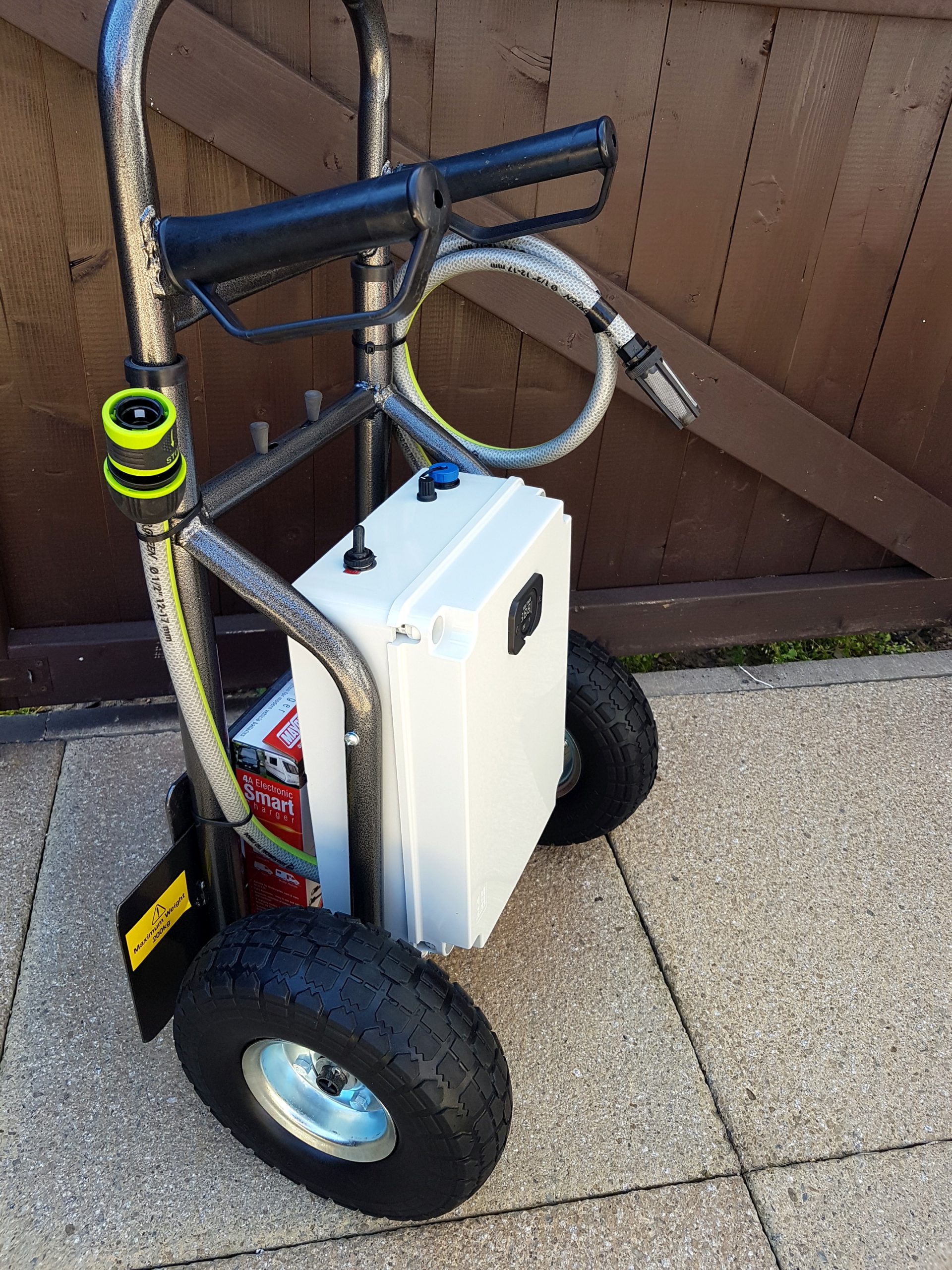

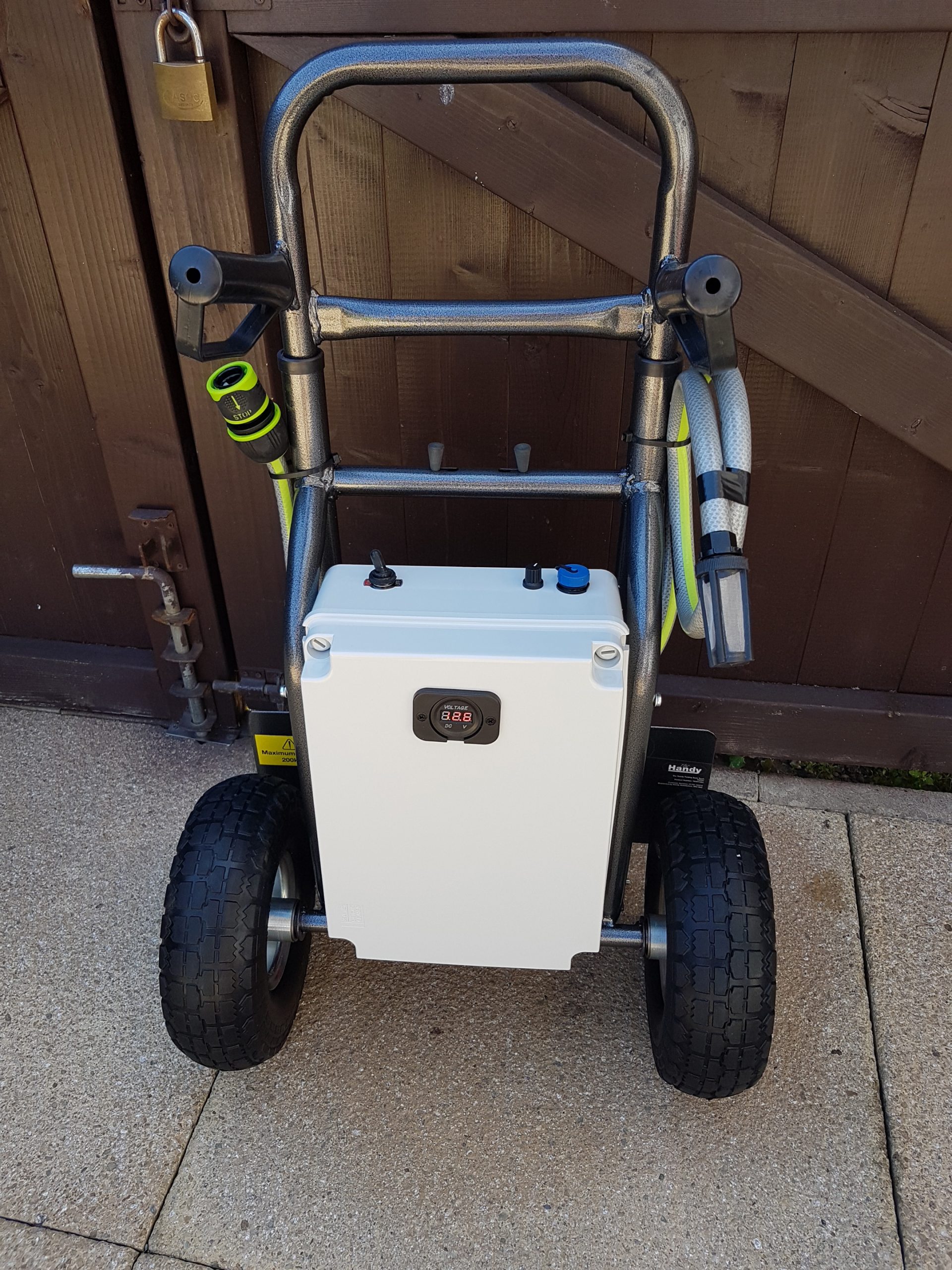

Warrior “Warlord” 12.5LPM Softwash Chemical Resistant System

Description

"Warrior "Warlord"
Fully Chemical Resistant
12.5 Litre Per Minute System

– – – – – – – – – – – – – – –

– SYSTEM FEATURES & SPECS:  –

– – – – – – – – – – – – – – –

PUMP:

Fully adjustable 0 – 12.5 LPM Chemical resistant Pump

Pump Composition
Pump head: Nylon
Pump head cover: PPS
Motor housing: Polypropylene
Valves/seals: EPDM
Diaphragm: Santoprene

This pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass.

It provides up to 4.5 gallons per minute, is self-priming, and can run dry without damage.

Has a built-in pressure switch, which automatically starts and stops the pump when tap/trigger or water flow is restricted

The pump fitted to our Warlord 12.5lpm systems provide high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, providing up to 3.3 gallons/12.5 litres per minute.

These pumps are self-priming, and can run dry without damage, performance reliable and low current. The automatic on demand warlord system pump has a built-in pressure switch, which automatically starts and stops the pump when flow to your pole or lance is opened and closed.

INFORMATION

• Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
• Control Type: Pressure switch & By pass control
• Max Recommended Temperature: 60° C (140° F)
• Priming Capabilities: 6 feet (1.8 m) suction lift
• Inlet/Outlet Ports: QUICK CONNECT
• Weight: 4.98 lbs (2.26 kg)

• PUMP CONFIGURATION

• Voltage:12V
• Power Draw: 8.0 Amps
• Open Flow（3GPM/12.5LPM）
• Control Type: switch & By pass
• Valves: EPDM
• Diaphragm: SANTOPRENE

Fully compatible with all solutions & chemicals used in providing soft wash services.

 – – – – – – – – – – – – – – – – – – – – – – – – – –

BATTERY:

GENUINE SLX POWER

Latest 2024 Valve Regulated Gel Cell – Maintenance Free High Capacity 12V 12AH SLA Battery.

Brand:   SLX
Voltage: 12V
Capacity:12AH

– – – – – – – – – – – – – – – – – – – – – – – – – –

CHARGER FEATURES & SPECS:

4.0amp 12V Intelligent Battery Charger.

Intellicharge “Kwik” Connect Charging System
The IP65 rated charging port installed on your system makes connecting/disconnecting your charger a doddle & around 2 seconds flat.

No need to disconnect – simply “Connect & Forget”

CHARGER FEATURES & SPECS:

Fully automatic dual voltage smart charger

• 5 stage charging cycle – automatically detects the battery voltage & condition before re-conditioning, charging & maintaining the battery.
• Built in safety features – overload, reverse polarity & short circuit detection.
• 1.5m leads with interchangeable insulated crocodile clips & ring terminals.

Dual Purpose 4.0amp 12V Intelligent Battery Charger.

Quick Connect Charging Port: This system is fitted with our IP65 rated “Aircraft Standard” Quick Connect waterproof charging port.

Making connecting/disconnecting your charger a doddle & around 3 seconds flat!

Fully automatic charging & maintenance of your battery! No need to disconnect – simply “Connect & Forget”

LCD display with battery level indicator & dual colour backlight
Overload, reverse-polarity and short circuit protection

Charging Example: the 12AH capacity battery supplied with your system will take between 2 – 3 hours from fully depleted state to fully charged state with the supplied 5.0 amp intelligent charger.

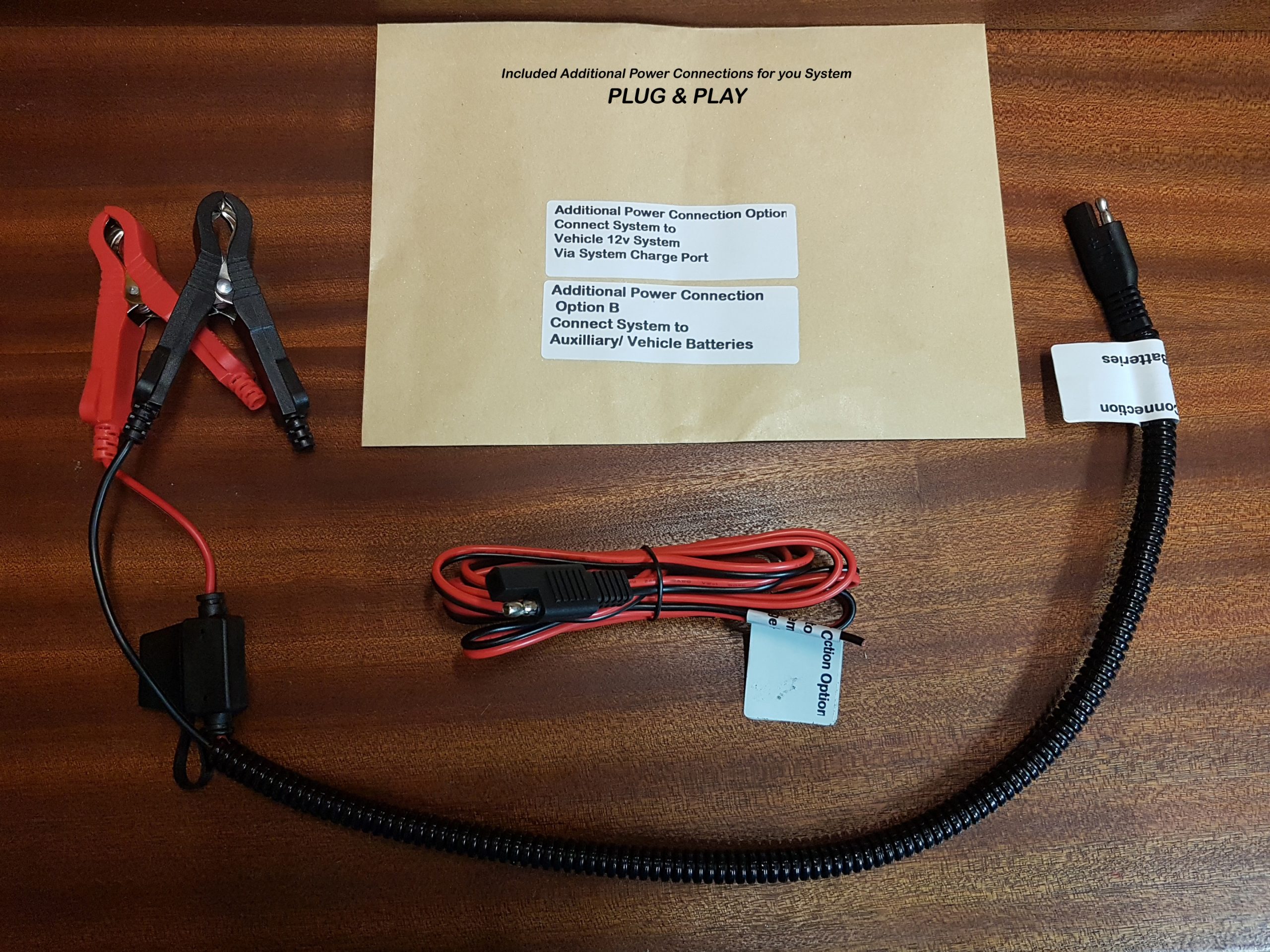

Includes Additional Power options for your system

System to Aux Battery Wiring Kit

This enables the system to be connected directly to an auxiliary Battery  by connecting it directly to the system charge port.

– – – – – – – – – – – – – – – – – – – – – – – – –

ALSO INCLUDED WITH EVERY SYSTEM:

1 x 15amp Flow Controller:  Manually adjusts water flow rates from zero flow to full flow

1 x Webbing Water Container Strap

1 x Charger Quick Connect System

1 x System to Auxiliary Battery Wiring Kit (includes crocodile) clips (Allows the system to be connected directly from the charging port to a vehicle or a standalone/auxiliary battery when longer periods of usage are required.

1 x 1/2″ High Quality CLABER pole hose connector

1 x Water pickup hose Pre-Filter/Strainer (Stainless Steel Mesh)

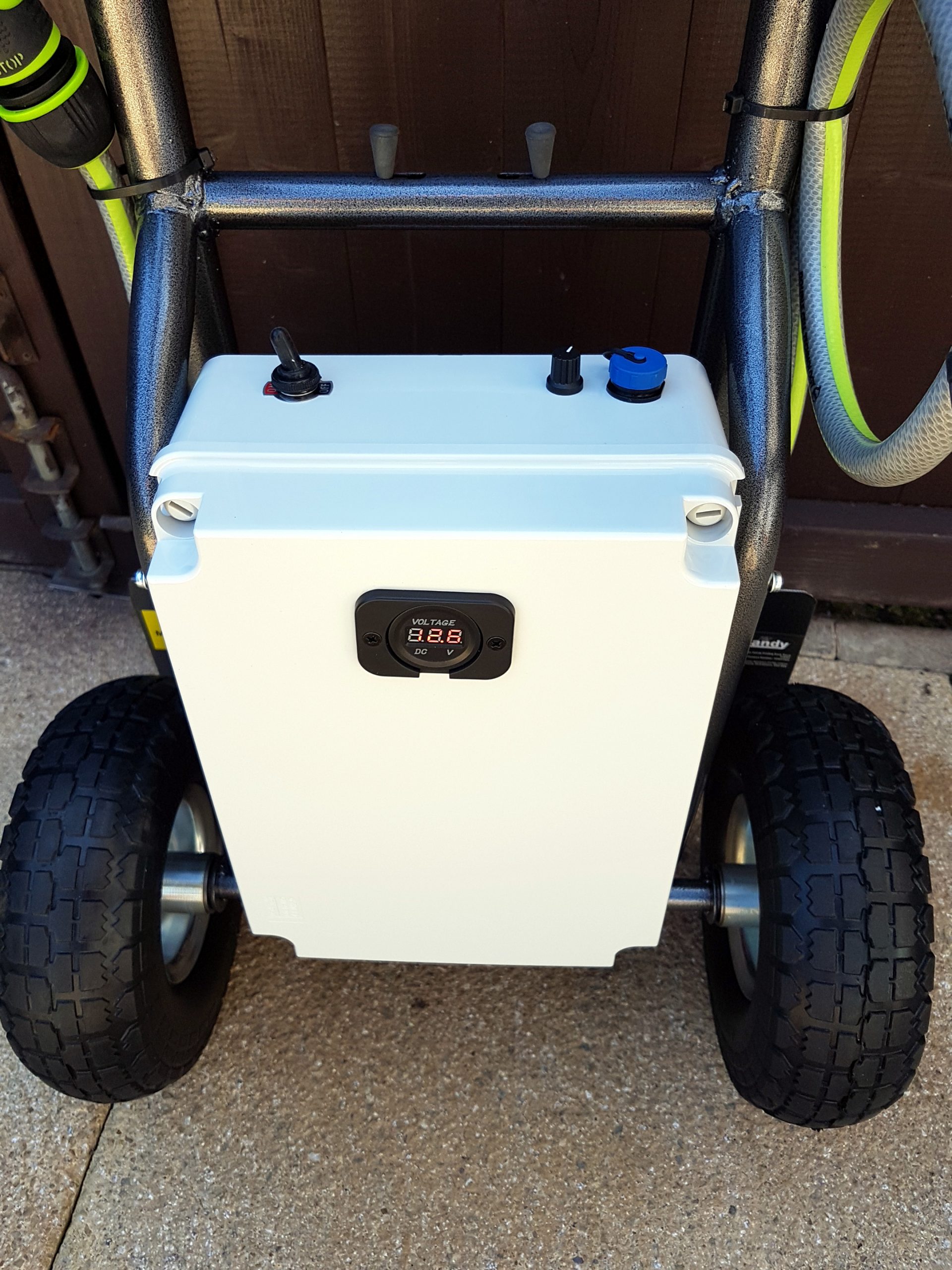

1 x LED Voltmeter (Displays the battery voltage levels)

2 x High Quality 12mm 1/2″ water draw & feed hoses

– – – – – – – – – – – – – – – – – – – – – – – – – –

This system is fitted with a 0 – 12.5 litre per minute Chemical Resistant Pump & is suitable for providing both pure water fed pole window cleaning as well as softwash applications & services.

– – – – – – – – – – – – – – – – – – – – – – – – – –

If you have any questions at all please don’t hesitate to contact us a quick reply is assured!

– – – – – – – – – – – – – – – – – – – – – – – – –

IMPORTANT **PLEASE NOTE**

Water Containers, Water-fed Poles & Brushes are NOT included with any system & may be shown for illustration purposes only



– – – – – – – – – – – – – – – – – – – – – – – – –
