Description

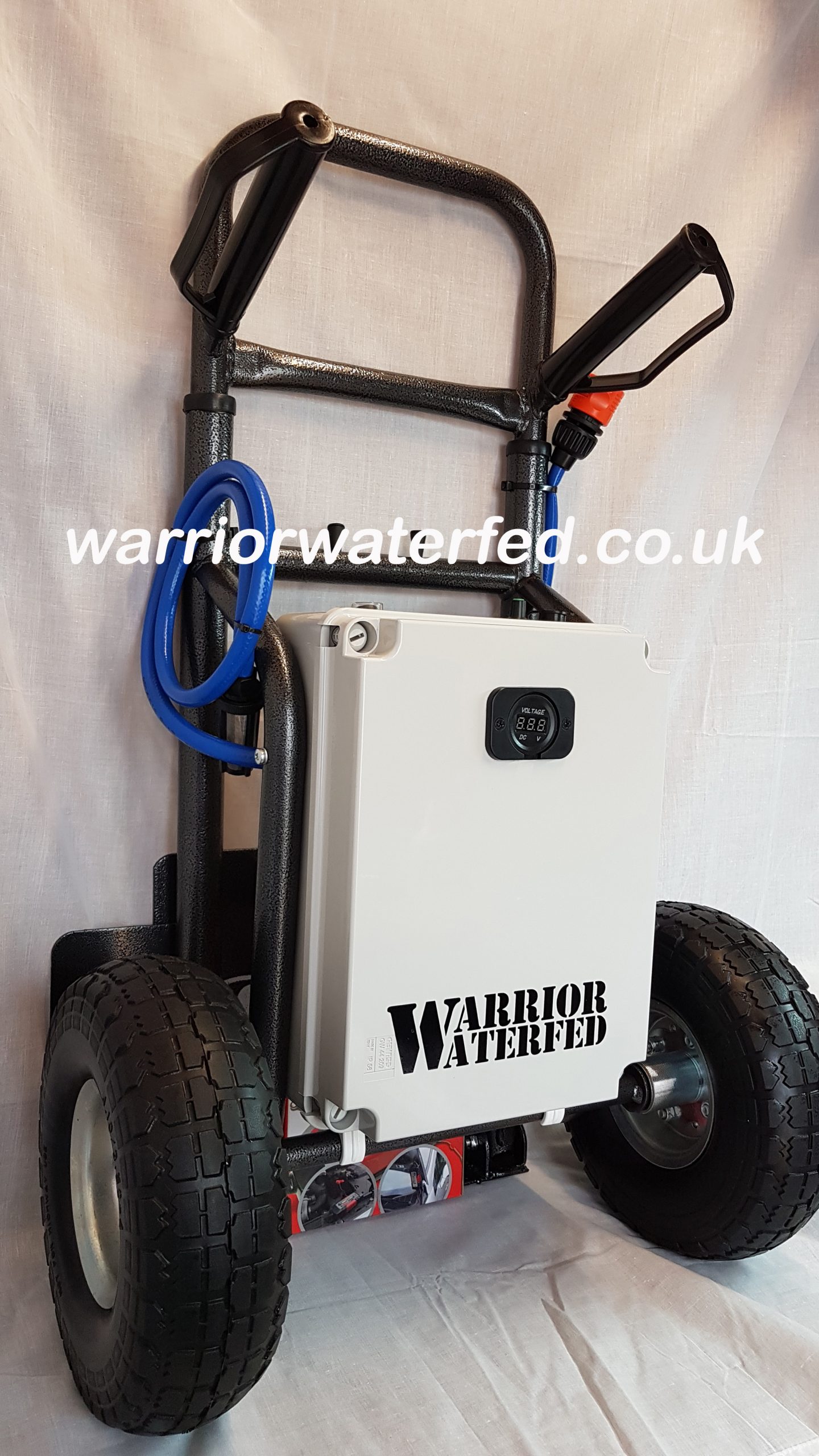

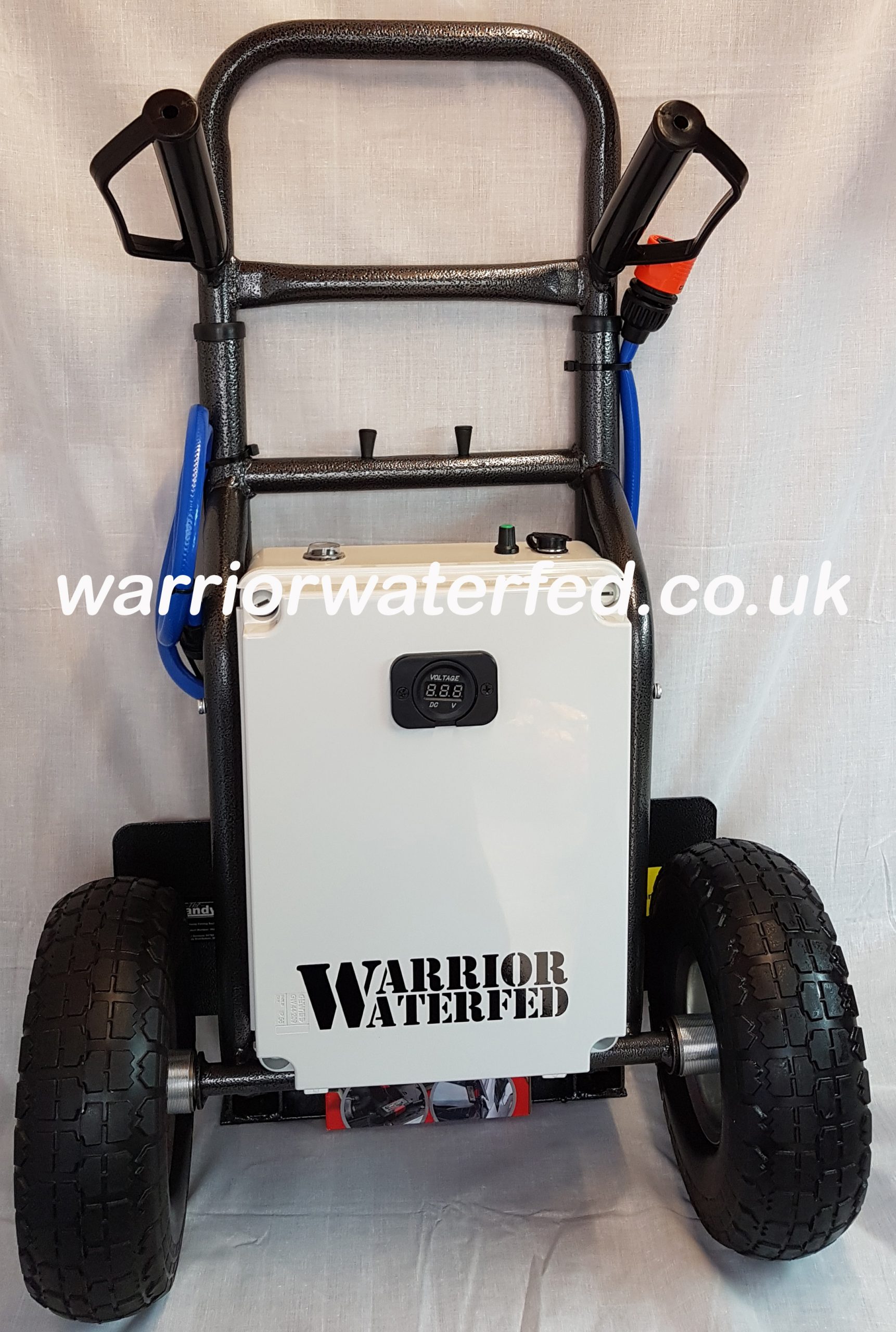

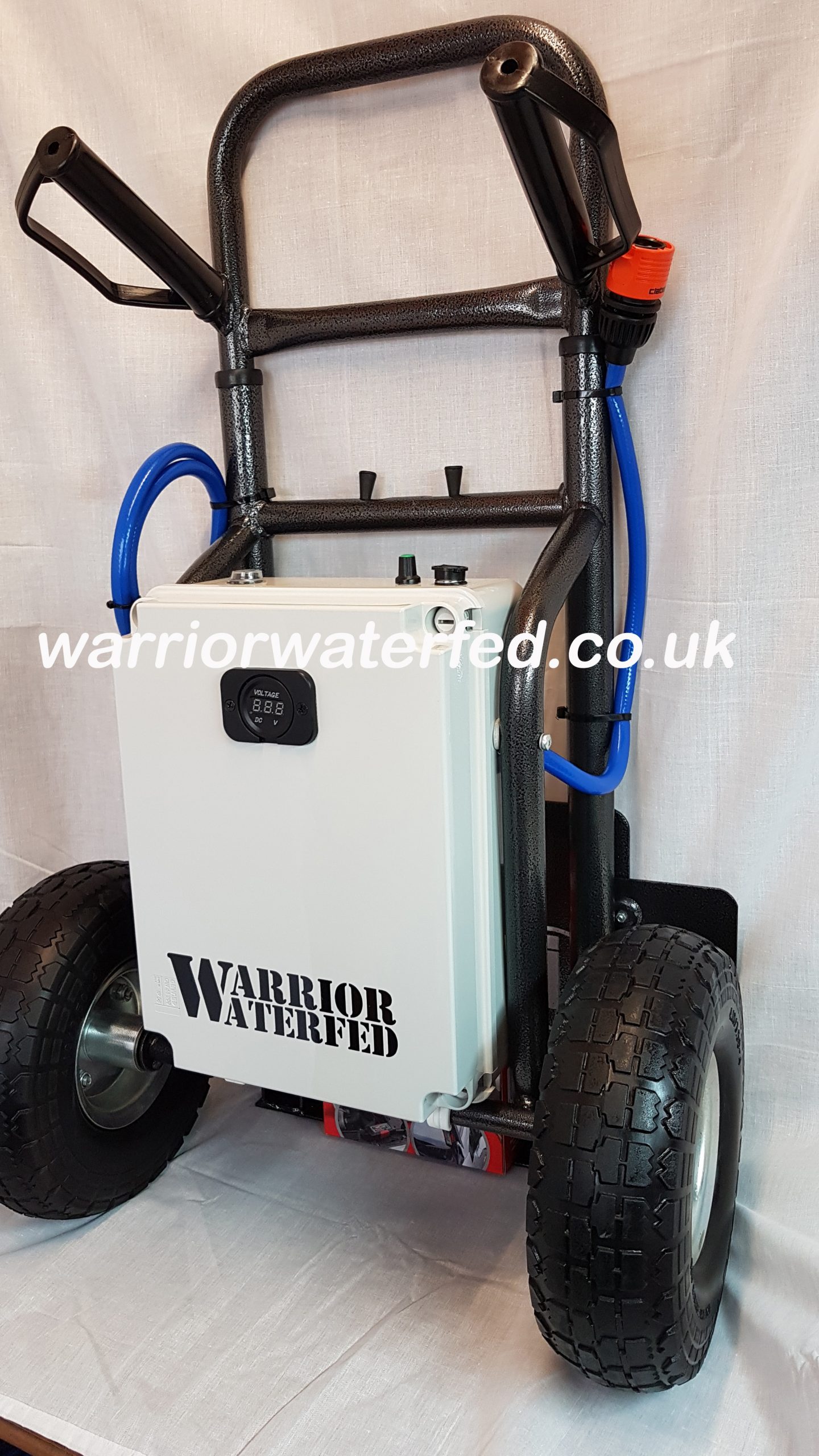

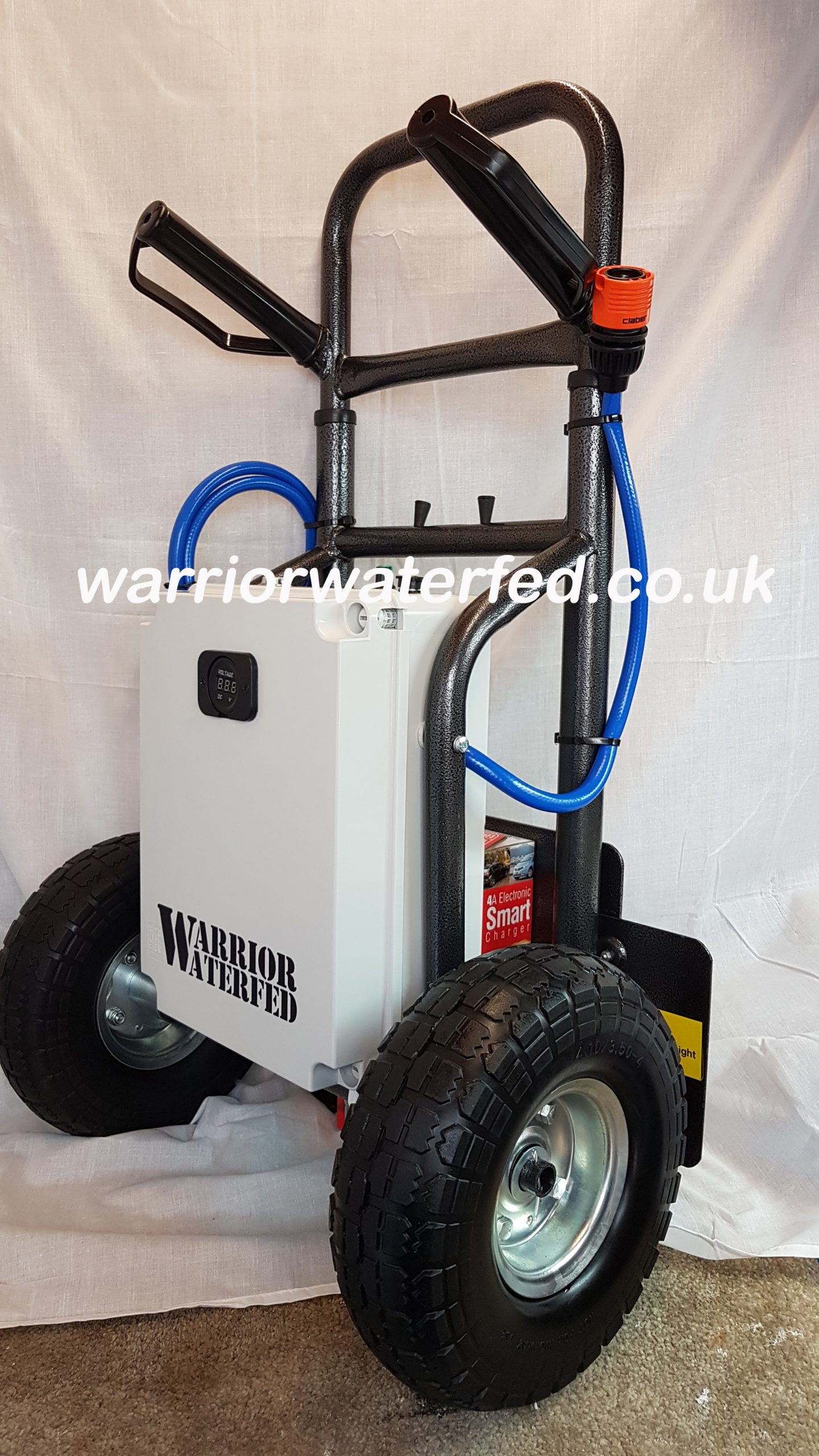

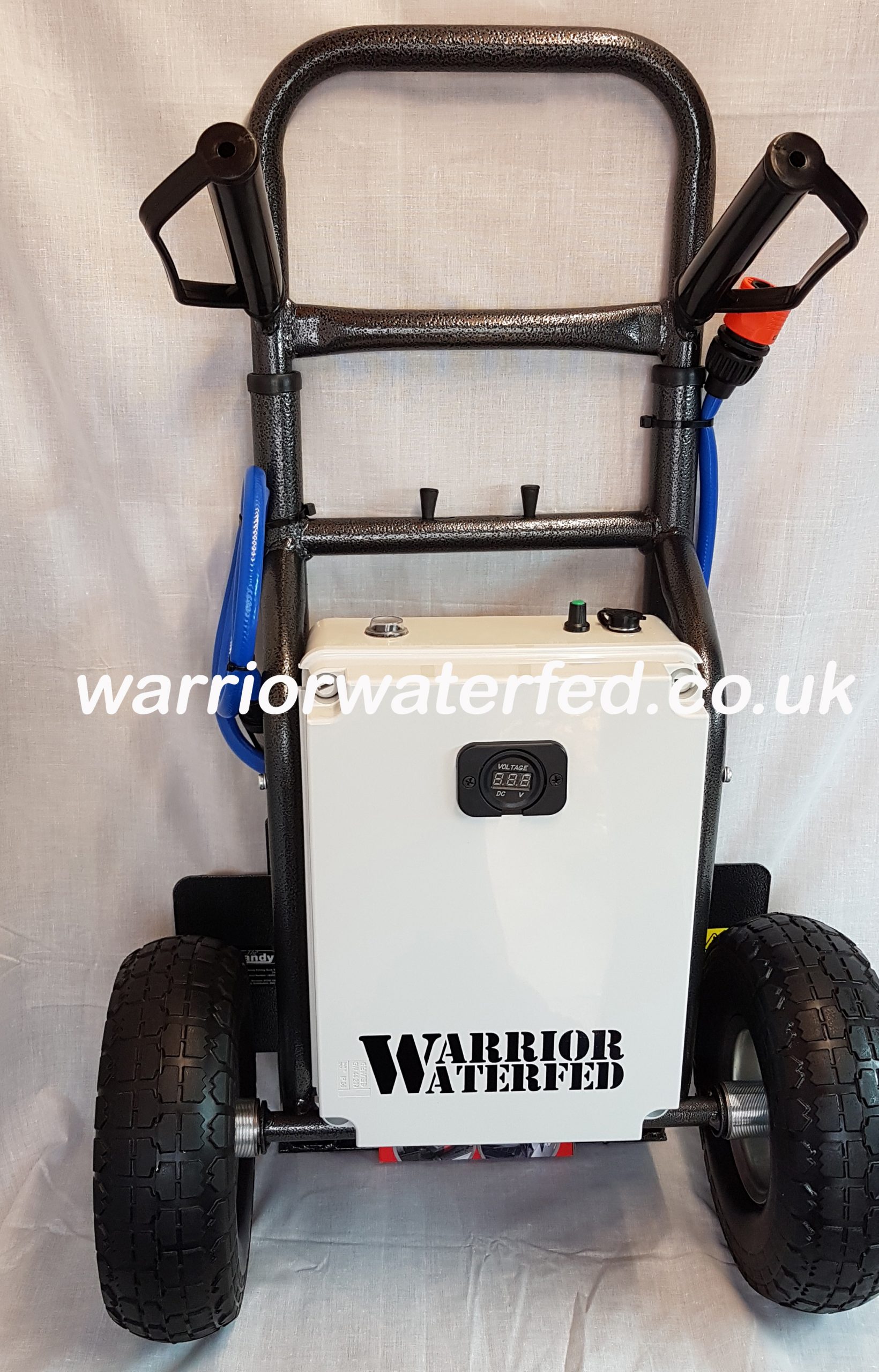

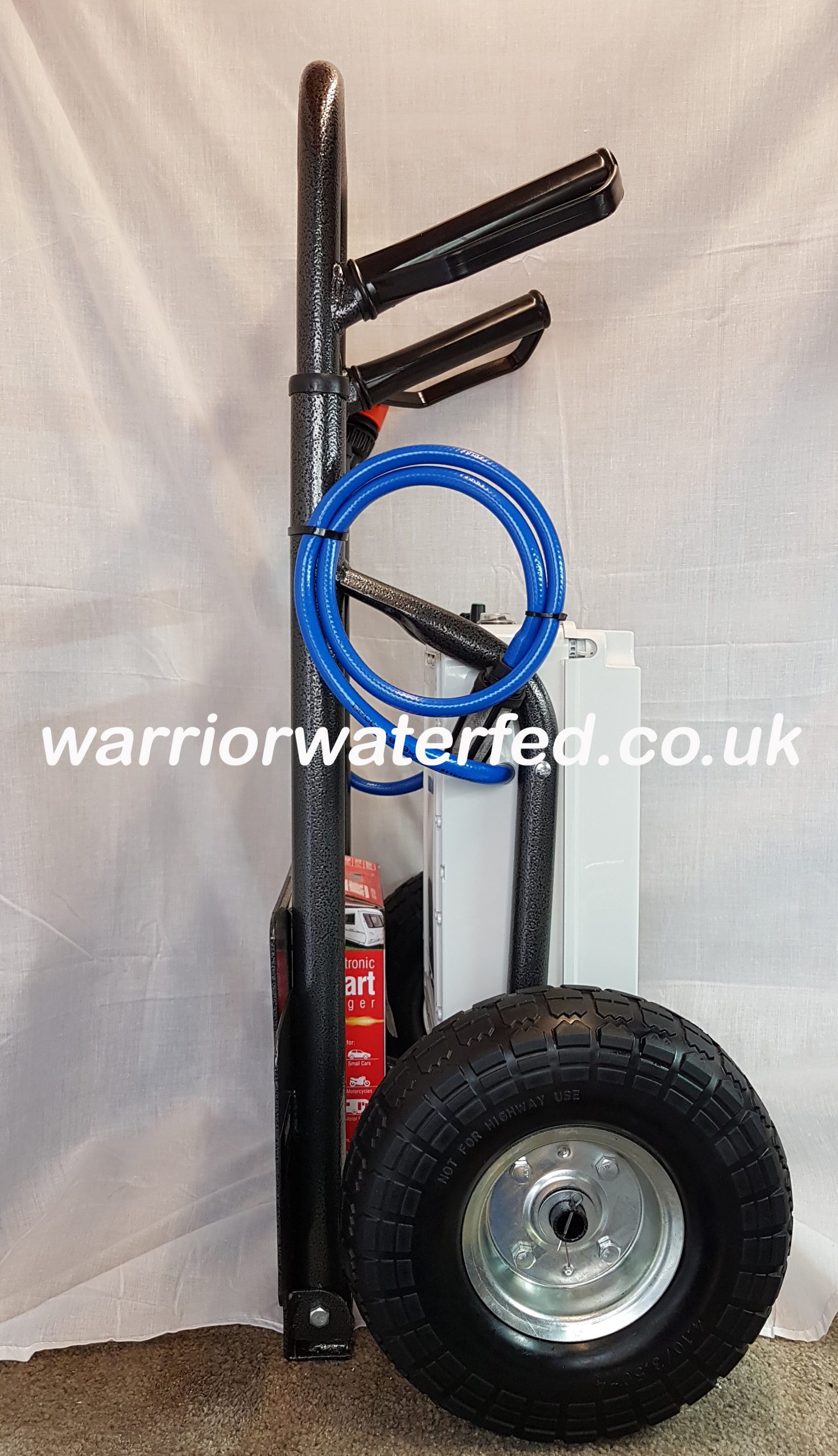

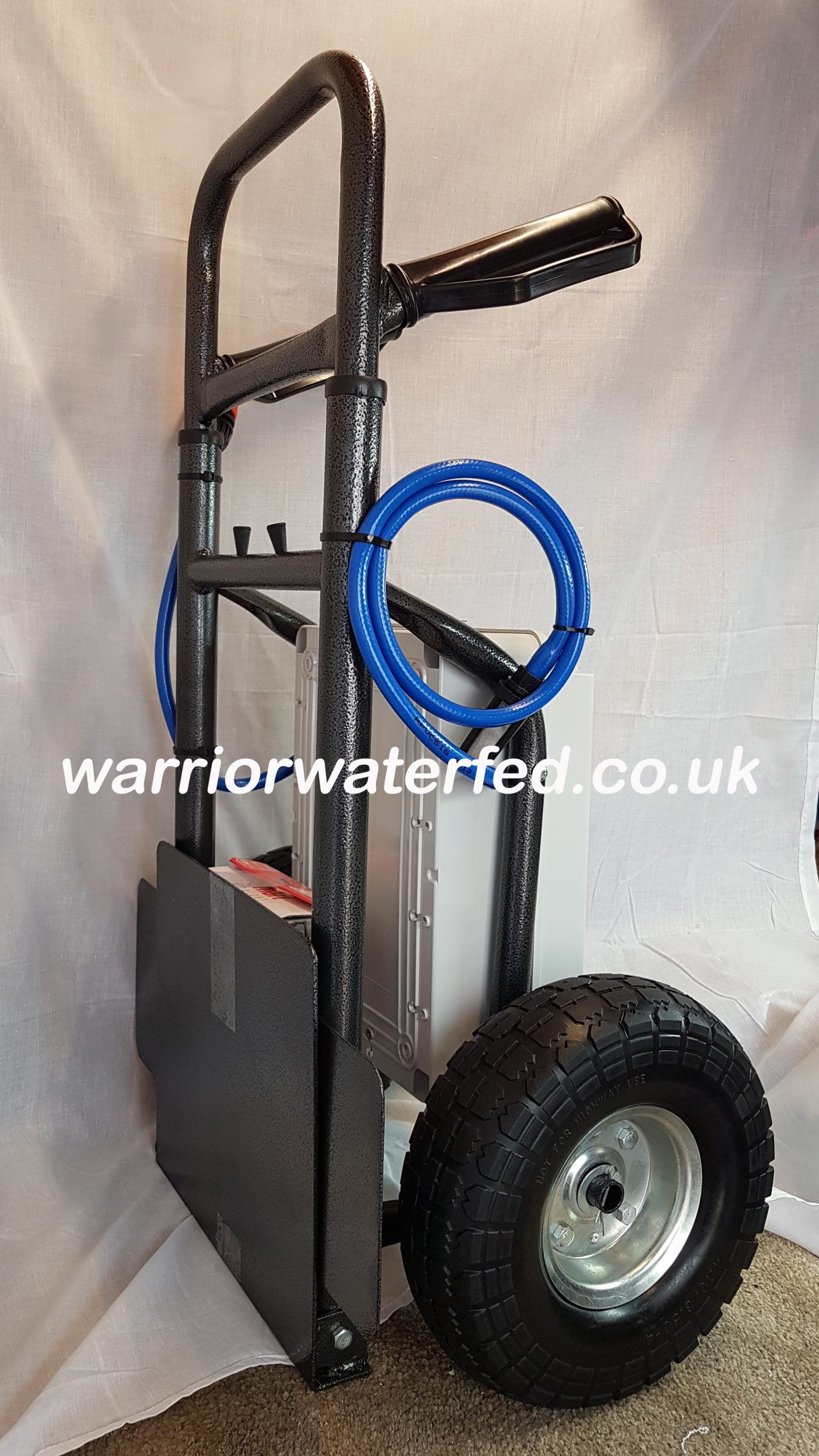

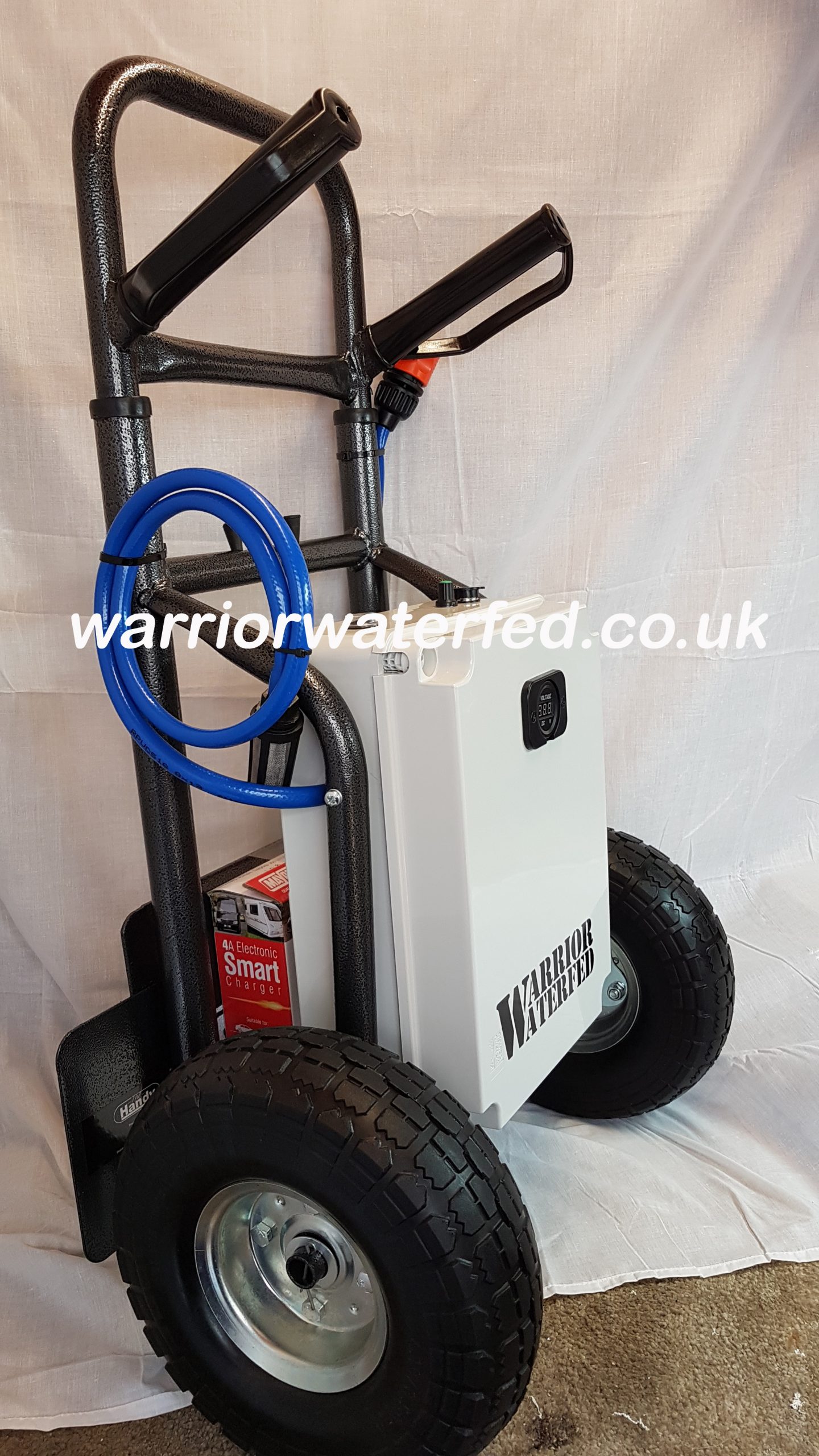

WARRIOR WARTHOG
6.0lpm/120psi Waterfed Trolley System
NON CHEMICAL RESISTANT PUMP
– TROLLEY FEATURES & SPECS: –
– – – – – – – – – – – – – – – – – – – – – – – – – – – –
25mm tubular steel frame
Puncture-less tyres
Collapsible & removable handles and folding base plate
Load capacity 200kgs
Tyre Size: 10″
Height Folded: 80cm – Extended: 113cm
Overall Width (including tyres): 48cm
Toe Plate Dimensions (Width/Depth): 31cm/28.5cm
– – – – – – – – – – – – – – – – – – – – – – – – – –
A combination of the low weight & intentional low centre of gravity, along with the spring-loaded telescopic handles & folding toe plate means it is easily carried and stored in the tightest of spaces, which makes lifting the system in and out of a car boot or van an absolute doddle.
– – – – – – – – – – – – – – –
– SYSTEM FEATURES & SPECS: –
– – – – – – – – – – – – – – –
PUMP: 6.0lpm/120psi Fresh water pump(NOT CHEMICAL RESISTANT)
Technical specifications
Pump composition
Flow Rate 0 – 6.0 litre per minute
RUBBER Diaphragm:
RUBBER Valves/seals
Pump head: nylon
Pump head cover: PPS
Motor housing: polypropylene
2 Chamber positive displacement diaphragm pump
Automatic stop/start: controlled by pressure switch
Self-priming
Run dry capable for normal workloads
This pump is fitted with chemical resistant diaphragm & Seals, & a pressure regulated switching, enabling the pump to start/stop as you open/close the tap/trigger on your water-fed pole.
– – – – – – – – – – – – – – – – – – – – – – – – – –
BATTERY:
GENUINE SLK
2024 SLK Valve Regulated Gel Cell – Maintenance Free High Capacity 12V 12AH SLA Battery.
Brand: SLK
Voltage: 12V
Capacity:12AH
This GENUINE SLK high quality battery has more than enough grunt to power your system throughout a day’s workload from a fully charged state.
– – – – – – – – – – – – – – – – – – – – – – – – – –
CHARGER FEATURES & SPECS:
Fully automatic dual voltage smart charger
- 5 stage charging cycle – automatically detects the battery voltage & condition before re-conditioning, charging & maintaining the battery.
- Built in safety features – overload, reverse polarity & short circuit detection.
- 1.5m leads with interchangeable insulated crocodile clips & ring terminals.
Dual Purpose 4.0amp 12V Intelligent Battery Charger.
Quick Connect Charging Port: This system is fitted with our IP65 rated “Aircraft Standard” Quick Connect waterproof charging port.
Making connecting/disconnecting your charger a doddle & around 3 seconds flat!
Fully automatic charging & maintenance of your battery! No need to disconnect – simply “Connect & Forget”
LCD display with battery level indicator & dual colour backlight
Overload, reverse-polarity and short circuit protection
Charging Example: the 12AH capacity battery supplied with your system will take between 2 – 3 hours from fully depleted state to fully charged state with the supplied 5.0 amp intelligent charger.
– – – – – – – – – – – – – – – – – – – – – – – – –
ALSO INCLUDED WITH THIS SYSTEM:
1 x 15amp Analogue Flow Controller: Manually adjusts water flow rates from zero flow to full flow
1 x Webbing Buckle Water Container Strap
1 x IP65 Rated Charging Quick Connect System
1 x Hozelock type Pole Hose Connector
1 x Water pickup hose Prefilter/strainer (Stainless Steel Mesh)
2 x High grade 8mm Internal bore & 13mm outer diameter anti-kink water draw & feed hoses
1 x LED Voltmeter display (Gives you the ability to constantly monitor your battery Power levels)
– – – – – – – – – – – – – – – – – – – – – – – – – –
If you have any questions at all please don’t hesitate to contact me a quick reply is assured!
– – – – – – – – – – – – – – – – – – – – – – – – –
IMPORTANT **PLEASE NOTE**
**UNI-VALVE** due to the high pressure 120psi rated pumps supplied with both our Warthog & Wildcat 120 psi/6.0lpm systems, The use of Exceed innovation’s UNI-VALVE is NOT advised/recommended & usage is at your own risk!
This is due to the violent & instant stop/start nature of water flow when using a UNI-VALVE which may cause the hose to detach from the pump at the point it connects causing the hose/pump connection to leak.
– – – – – – – – – – – – – – – – – – – – – – – – –
FINALLY, Water Containers, Water-fed Poles & Brushes are NOT included with any system & may be shown for illustration purposes only
– – – – – – – – – – – – – – – – – – – – – – – – –
